CNC Multi-tasking machine

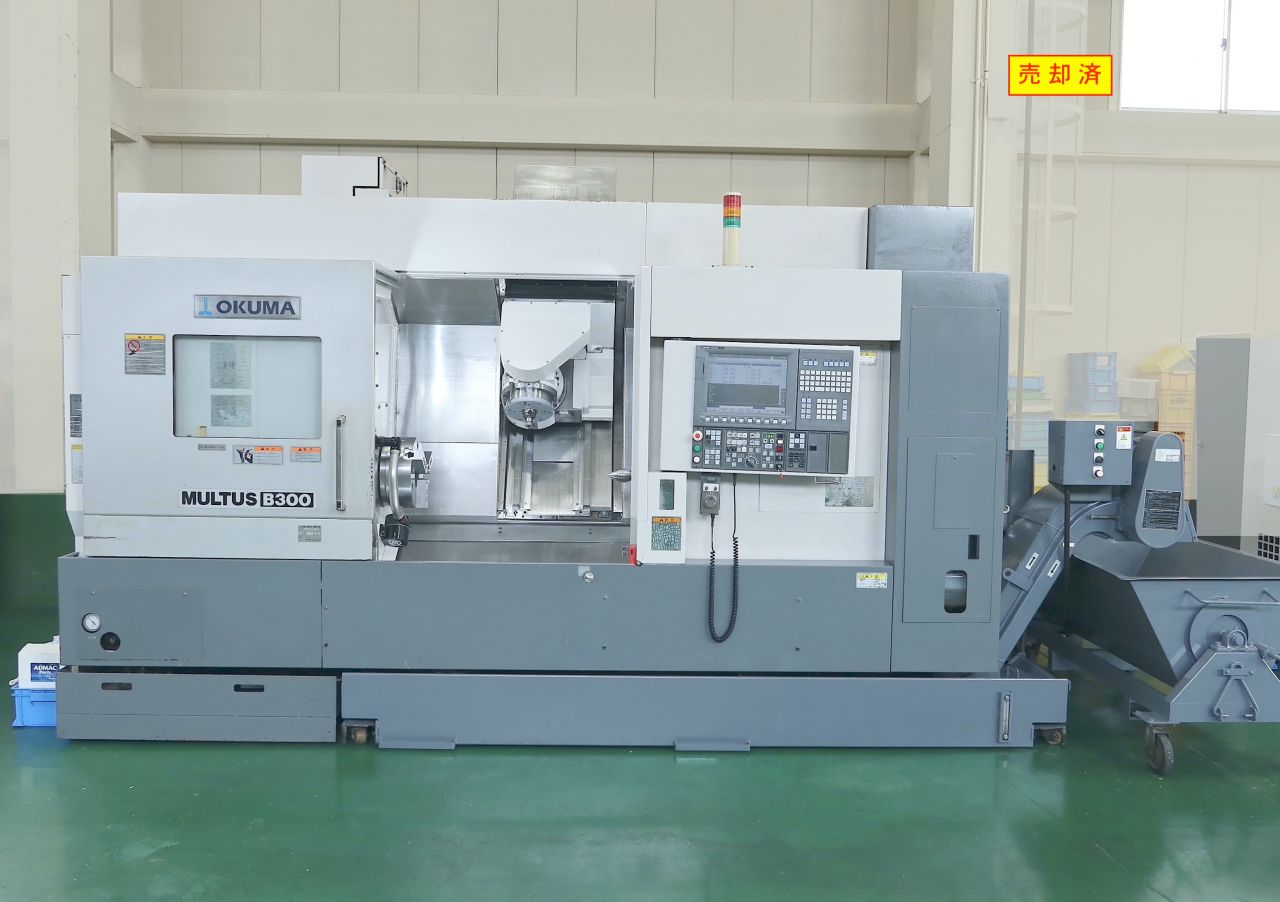

Manufacturer OKUMA Model MULTUS B300 Year 2006
Specification Control：OSP-P200L(One-Touch IGF)
Chuck: 10” Hollow (Kitagawa B-210A6)

Main spindle: 4200rpm

Max.Maching Dia.×Length：φ630×900

Travel：ZXYCB：930x580x160x360° x210°
W-Axis(Tail stock)：667

Milling spindle: 6,000rpm、 HSK-A63、 ATC40

B-Axis: 0.001°Indexing、C-Axis: 0.001°

・M-spindle through coolant

・NC tail stock ・Tool setter
・Steady rest(φ20-150)
・Chip-conveyor
詳細はこちら

CNC Multi-tasking machine

Manufacturer OKUMA Model MULTUS B300 Year 2006
Specification Control：OSP-P200L(No Interactive)
Chuck: 12” Hollow (Kitagawa BB212)

Main spindle: 3500rpm

Max.Maching Dia.×Length：φ630×900

Travel：ZXYCB：930x580x160x360° x210°
W-Axis(tail stock)：667

Milling spindle: 6,000rpm、 HSK-A63、 ATC40

B-Axis: 0.001°Indexing、　C-Axis: 0.001°

・M-spindle through coolant
 ・NC tail stock
・Tool setter ・Chip-conveyor
詳細はこちら

CNC Multi-tasking machine

Manufacturer MORI SEIKI Model NL1500SY/500 Year 2012
Specification Control：M-720BM (MAPPS 4)
Chuck: 6”Hollow (Kitagawa BB206/B-206)
Swing over bed:φ923.8
Distance between two spindles: 830
Max.Dia. x Length:φ386×515、Turret：V12
Both spindles speed: 6,000rpm、 0.001°Indexing
Milling speed: 6000rpm、Y-Axis control
Through hole:φ61、 Bar work capacity: φ52
Travel：X:260 x Z:590 x Y:(+50,-50)
　　　　Sub-spindle(B-Axis): 624
・Tool pre-setter(both spindle)
・Work discharge device/ Work conveying device
・Misst collector　　・Chip-conveyor
・3m ALPS TOOL Bar feeder (ASR X-45/51PN2)
・Relocation detection device
詳細はこちら

CNC Multi-tasking machine
SOLD OUT

Manufacturer MORI SEIKI Model NT4300DCG/1500SZ【SOLD OUT】 Year 2006
Specification Control：MSX-701Ⅲ(MAPPSⅢ)
Max.Workpiece Swing:φ730
Distance between Spindle Nose:1862
Max.Turning Dia.: Tool-spindle:φ660 / Turret:φ350
Max.Turning Dia.：1500
Travel(Tool-spindle Head):XYZB：750x ±210x1650x ±120
Travel(Turret)：XZ:195x1525、(Turret:V10)
Travel(Spindle 2) : 1610
Spindle1/Spindle2: 12in Hollow、3000rpm, C-Axis:0.0001°Indexing
Tool-Spindle: 12,000rpm, B-Axis:0.0001°Indexing、Capto C6, ATC100
・B-Axis Scale feedback
・Tool-Spindle Through-spindle coolant(3.5Mpa.)
・ In-machine measurement device (Tool-spindle/RenishawMP700)
・In-machine Tool presetter(Manual)/(Spindle1/Spindle2)
・Mist collector
・Chip-conveyor(Hinge + scraper + drum filter)
・Many tooling included
詳細はこちら

CNC Multi-tasking machine
SOLD OUT

Manufacturer MAZAK Model INTEGREX i-300【SOLD OUT】 Year 2014
Specification CNC Multi-tasking machine(Simultaneous5-Axis)
Control：MAZATROL matrix2
Chuck: 10” Through-hole (Kitagawa BB-210)、
C-axis: 0.0001°Indexing
Max.Swing: φ658、
Distance between center：1500
Machining Dia.×Length：φ658×1519
Main spindle：4000rpm、　
Max.Bar Work Capacity: φ91
Milling spindle: 1200rpm、HSK63、ATC36
B-axis: 0.0001°(Can not Contouring turning/with 5° Indexing(Coupling clamp)
Y-axis control
Travel:XZYW: 615x1585x250x1562

・ Milling spindle through coolant
・Mazak Monitoring system B(Renishaw RMP60)
・Independent chuck(Kitagawa IC16)
・Steady rest : φ30〜220
・Chuck Raising: 80mm
・Tailstock　 ・Chip-conveyor
・ Relocation detecting device
詳細はこちら

CNC Multi-tasking machine
SOLD OUT

Manufacturer MAZAK Model INTEGREX300-Ⅲ(1500U)【SOLD OUT】 Year 2005
Specification Control：MAZATROL FUSION 640MT Pro
Chuck：10”Hollow（Kitagawa B-210A)
Max.Turning Dia.×Length：φ760×1532
Bar work capacity：φ88
Travel:XZYWBC：630x1585x230x225°x 360°
Tailstock travel(W)：1545、 Y-Axis control
Spindle spindle：4,000rpm、C-Axis indexing: 0.0001°
Mill spindle spindle: 12,000rpm、CAPTO、ATC40
B-Axis: 0.0001°（Can’t linkage machining)/ 5°Indexing）
・Mill spindle Though-coolant(15K)
・Automatic Tool pre-setter　・Automatic Tailstock
・Steady rest (φ20〜φ160)　　
・Chip-conveyor(CONSEP)
詳細はこちら

CNC Multi-tasking machine
SOLD OUT

Manufacturer MAZAK Model INTEGREX200-Ⅲ【SOLD OUT】 Year 2006
Specification Control：MAZATROL 640MT Pro
Chuck：10”Hollow（Kitagawa B-210A)
Max.Turning Dia.×Length：φ660×1016
Travel:XYZBC：580x160x1045x225°x 360°
Travel of tailstock (W)：1010、 Y-Axis control
Spindle speed：4200rpm、C-Axis indexing: 0.0001°
Mill spindle speed：12,000rpm、CAPTO、ATC80,
B-Axis: 0.0001°（Can’t linkage machining)/ 5°Indexing）
・Mill spindle Though-coolant(15K)
・Automatic Tool pre-setter　・Automatic Tailstock
・Steady rest (φ20〜φ160)　　
・Chip-conveyor(CONSEP)&Chip-bucket
