CNC Machine Tools
Double Column Machining Center
Manufacturer MORI SEIKI Model VS8000/50/1600 Year 2008 Specification Control: MSX-501Ⅲ(F-18iMB) (MAPPSⅢ)
Table: 2000×850, Capacity: 2000kg
Spindle: 8,000rpm, BT50, ATC30
Travel: XYZ: 1600×860×600
Distance from table to spindle end: 200〜800
・Through-spindle coolant(1.5MPa)
・W-Setter(manual tool and work piece measurement)
・Chip-conveyor
✴︎ Relocation detection device5-Face Double Column Machine Center

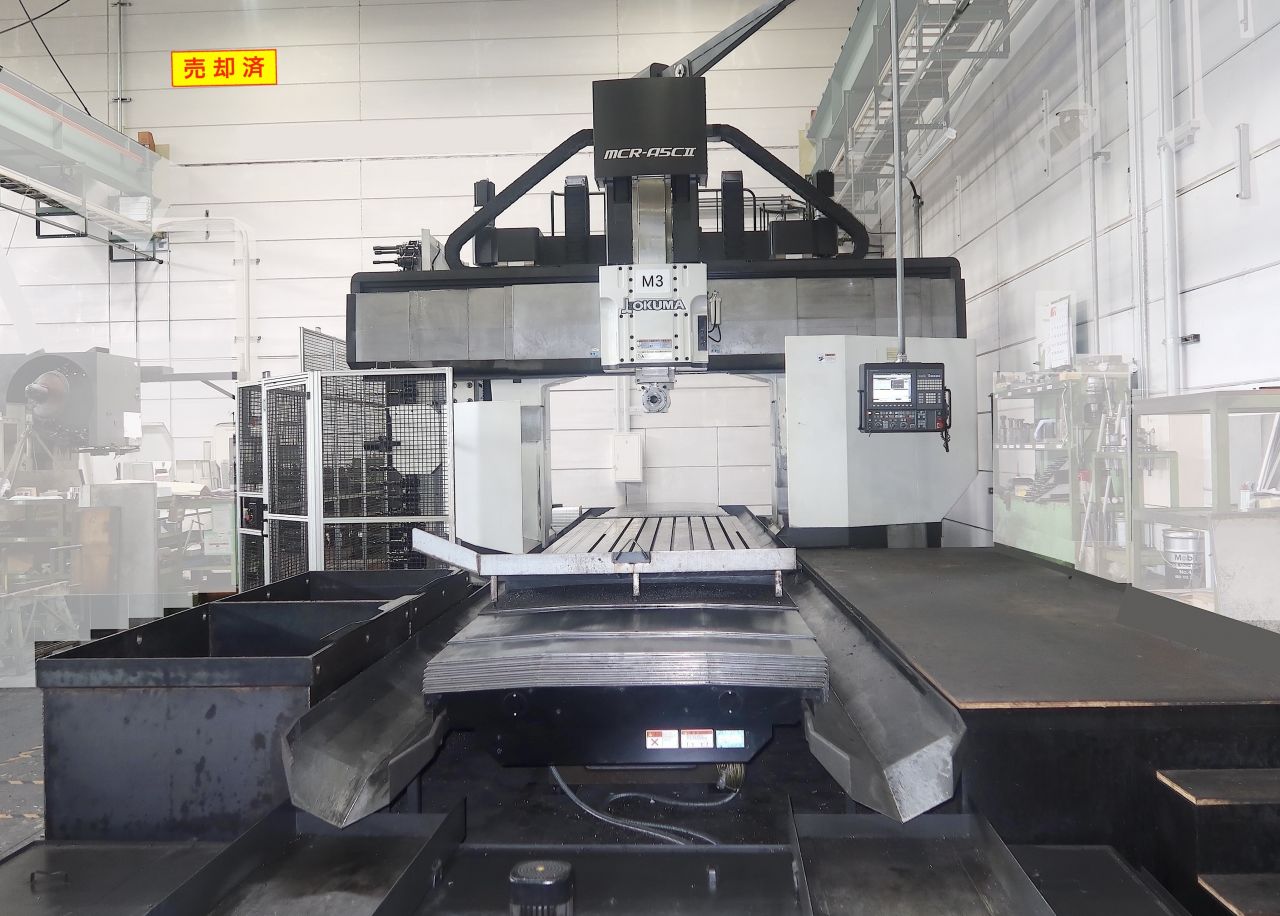

SOLD OUTManufacturer OKUMA Model MCR-A5C 25×50【SOLD OUT】 Year 2006 Specification Five-face Double Column Machining Center
Okuma MCR-A5C 25x50, Yr.2006
Cotrol: OSP-P200,
Effective Distance between columms:2550
Table: 200×5000, Loading capacity:23,000KG
Travel:XYZW:5200× 3000× 650× 900
Distance from table top to spindle end:1550
Spindle speed:6,000rpm, BT50, ATC50、
AAC Attachment: 2 stations
1.90°AngularHead (5°Indexing) 3000rpm
2.L250 Extension Head:6000rpm
Condition is excellent !5-Face Double Column Machine Center

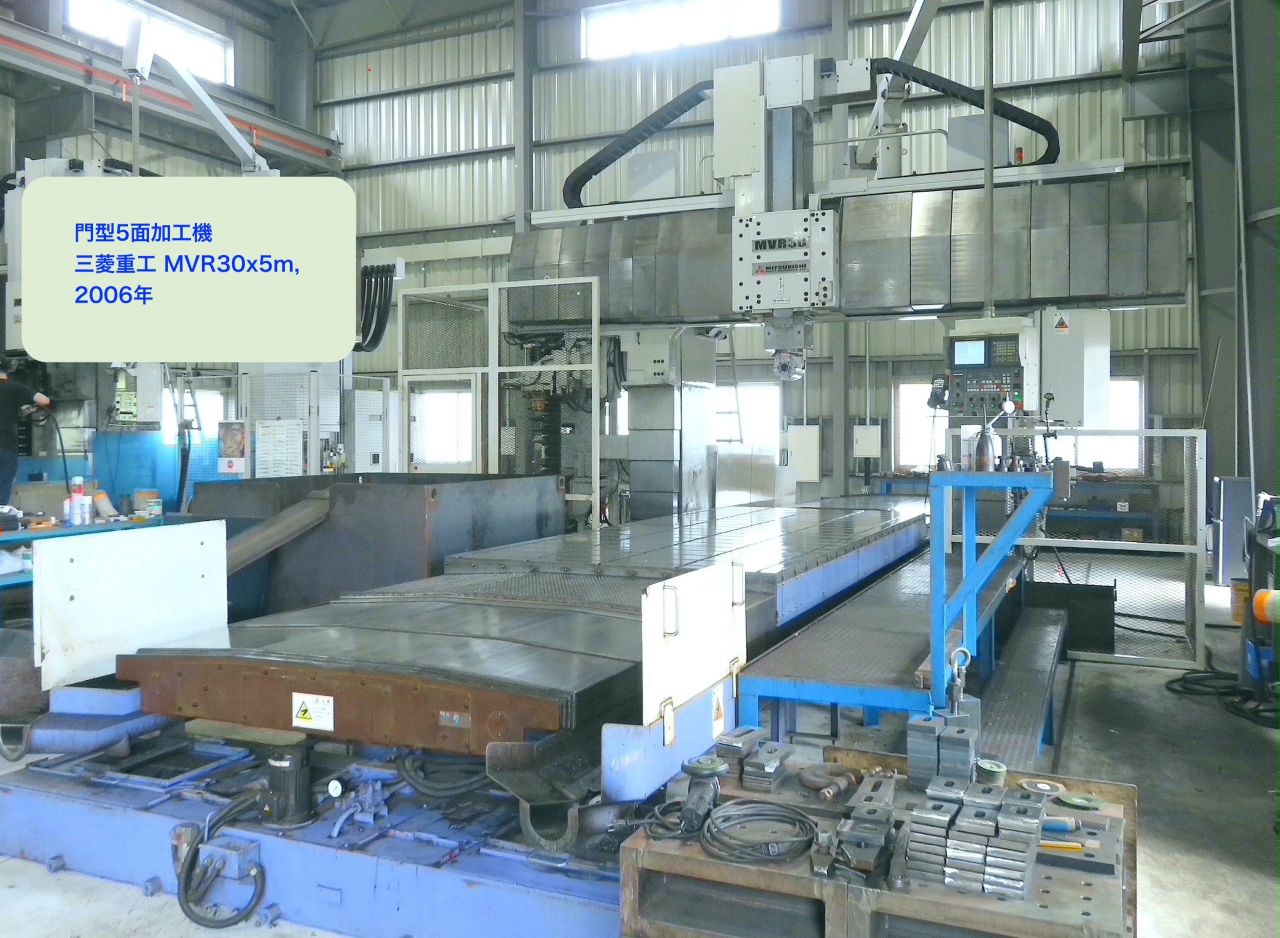

SOLD OUTManufacturer MITSUBISHI Model MVR30x5m【SOLD OUT】 Year 2006 Specification Control:Fanuc-18iMB(XYZW-Axis)
Effective wide between columns:2550
Table: 2000 x5000
Loading capacity: 30,000kg
Travel:XYZW: 5200x3000x700 x800
Table to spindle nose:1650
Spindle:6000rpm, BT50, ATC50
Angle head:VHRH-30-35-35P-AC
Spindle:6000rpm (Indexing:1°)
・Through spindle coolant & Air
・Helical interpolation ・Rigid tapDouble Column Machining Center
SOLD OUTManufacturer MAZAK Model FJV-35/120Ⅱ【SOLD OUT】 Year 2012 Specification Control: MAZATROL matrix nexus Distance between column: 860 Table: 750×3240, Loading weight: 3000kg Spindle: 10,000rpm, BT50, ATC30 Travel: XYZW: 3000×800×585 Distance from pallet top to spindle center: 200~785 ・Through spindle coolant (15kgf)
・Automatic tool length measuring(including breakage detection)
・Mazak Monitoring System B (Renishaw MP3) ・Linear scare Feedback (X・Y-axis) ・Spindle High-speed synchronous tapping
・The stop block for Angle head
・No chip-conveyor
・Relocation detecting deviceDouble Column Machining Center
SOLD OUTManufacturer KITAMURA Model BRIDGEcenter-6G【SOLD OUT】 Year 2016 Specification Control: Arumatic-Mi (Mitsubishi FCA850U)
Table: 900×1,800、 Table capacity: 3,000kg
Spindle speed: 12,000rpm, BT50, ATC40
Travel: XYZ: 1,530×1,095×710
Table top〜spindle end: 152〜862
・Through-spindle coolant (1.5Mpa)
・Automatic Tool length/dia. compensation(Renishaw TS27R)
・Touch sensor( Renishaw OPM60)
・Chip-conveyorDouble Column Machining Center
SOLD OUTManufacturer MAZAK Model FJV-50/80【SOLD OUT】 Year 2000 Specification 制御: MAZATROL 640M
門幅: 1230、 Table: 1000×2240
積載重量:4000kg
主軸:6,000rpm, BT50, ATC60
Control: MAZATROL 640M
Effective distance between columns: 1230
Table: 1000×2240
Loading capacity:4000kg
Spindle speed:6,000rpm, BT50, ATC60
Travel:XYZ: 2000×1150×585
Distance form table to spindle end:785〜200
・Automatic tool length measurement(In the ATC unit)
・Touch probe/ Renishaw MP3
Double Column Machining Center
SOLD OUTManufacturer MAZAK Model FJV-35/60Ⅱ【SOLD OUT】 Year 2015 Specification ★《Automatic machining:800Hour!!》
Control: MAZATROL MATRIX NEXUS 2
Distance between column: 860
Table: 750×1740, Loading weight: 2500kg
Spindle: 10,000rpm, BT50(BBT), ATC30
Travel: XYZW: 1500×800×660
Distance from pallet top to spindle center: 160〜820
・Through spindle coolant (15kgf)
・Scare Feedback (XYZ-axis)
・Mazak Monitoring System B (OMP60)
・Automatic tool length measuring(including breakage detection)
・Spindle high speed synchronization tap (M function)
・Simple mold software
・Chip-conveyor(CONSEP)
・Chip-bucketDouble Column Machining Center
SOLD OUTManufacturer KITAMURA Model BRIDGE Center 6G【SOLD OUT】 Year 2019 Specification Control: Arumatik-Mi (Mitsubishi FCA850VW)
Table:900×1,800 、Loading capacity: 3000kg
Travel:XYZ: 1,530×1,0950×710
Distance from Table to end of spindle:152〜862
Spindle: 12,000rpm, BT50, ATC40
・Automatic tool length & Tool diameter compensation system(Renishaw)
・Automatic work coordinate system setting device(Renishaw)
・Air blow device(Sice nozzle type)
・Chip conveyorDouble Column Machining Center
SOLD OUTManufacturer MAZAK Model FJV-35/60 【SOLD OUT】 Year 2005 Specification Contro:MAZATROL FUSION 640M
Distance between column:860
Table: 1740x750、 Loading weight:2500Kg
Travel:XYZ:1500×800×585
Spindle:10,000rpm、 BT50、 ATC40
Option:
★Spindle Through coolant
★Scale feedback (XYZ-Axis)
★Mold specifacation package
★Ball screw core cooling(XYZ)
★Touch prob(Renishaw MP3)
★Automatic tool length measure&Tool breakage detection functions
★High Column(785mm)Double Column Machining Center

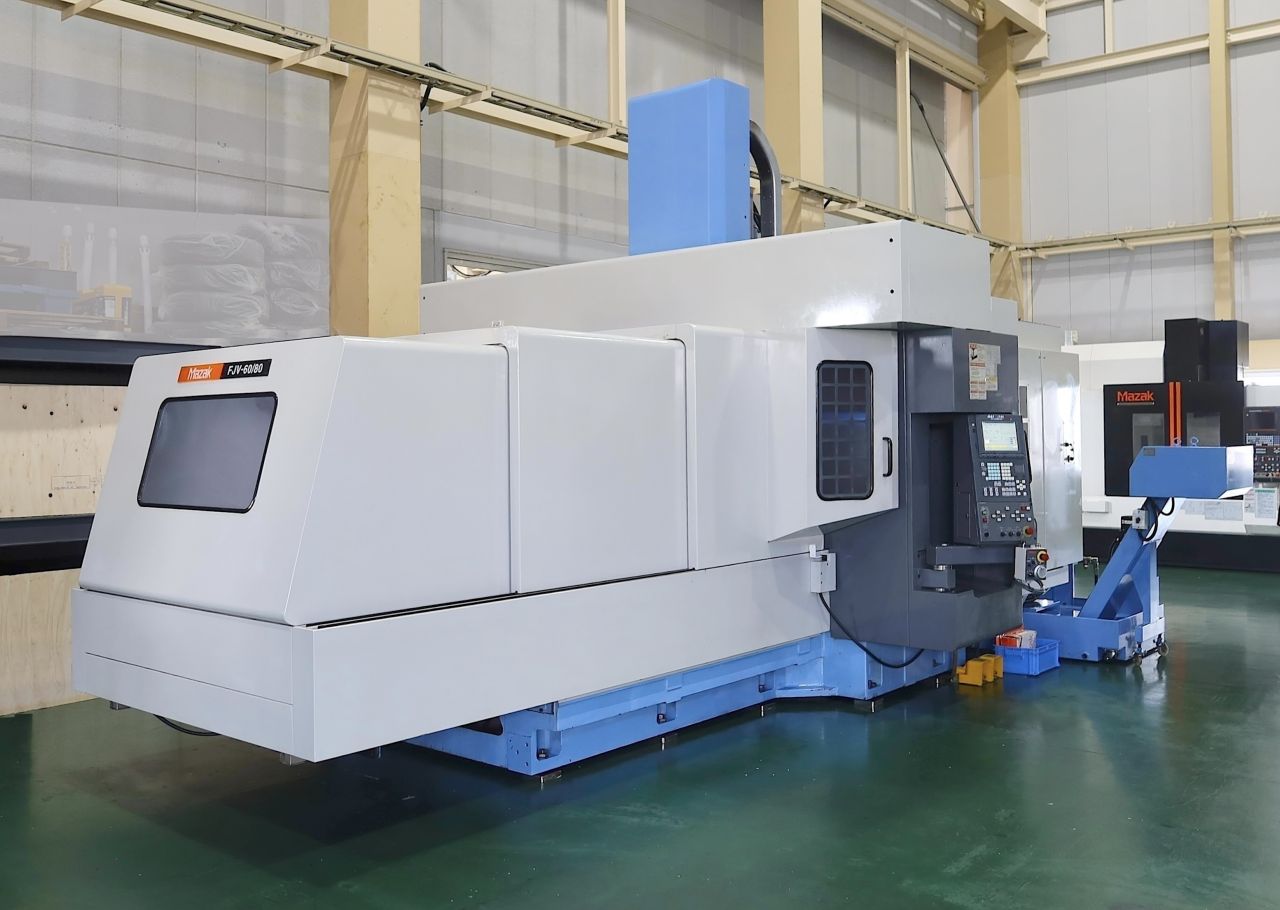

SOLD OUTManufacturer MAZAK Model FJV-60/120【SOLD OUT】 Year 2008 Specification Control: MAZATROL-640M
Distance between column: 1480
Table: 1250×3000 、 Capacity:5000kg
Travel:XYZ: 3200×1400×585
Distance from pallet top to spindle center:200〜785
Spindle:6000rpm, BT50, ATC30
・Through spindle coolant(5 kgf)
・Ball screw core cooling (X・Y・Z)
・Automatic tool length measuring
・Tool breakage detection
・Block for angle tool
・Chip-conveyor- 1-10 Total:10 1/1Pages
