CNC Machine Tools
Vertical Machining Center
Manufacturer OKUMA Model MB-66VB Year 2006 Specification Control: OSP-P200M (MAP)
Table: 1,530×660, Loading capacity: 1500kg
Spindle: 12,000rpm, BT50, ATC48
Travel: XYZ: 1,500×660×660
Distance Table top to spindle end: 150〜810
・Door Interlocking(Type Ⅱ)
・Chip-conveyorVertical Machining Center
Manufacturer DMG MORI Model DMC635V ecoline Year 2012 Specification Control: M730BM
Table: 790×560, Capacity: 600KG
Travel: XYZ: 635×510×460
Spindle: 8,000rpm, BT40, ATC20
Distance from table to spindle end: 120〜580
・Scale feedback(XYZ-axis)
★Relocation detecting device
Vertical Machining Center
Manufacturer MORI SEIKI Model DuraVertical 5080 Year 2013 Specification Control: Fanuc-0i-MD (MAPPS Ⅳ)
Table: 1100×600, Loading capacity: 800kg
Spindle: 12,000rpm, BT40, ATC30
Travel: XYZ: 800×530×510
Distance table top to spindle end: 150〜660
・Touch sensor(Table)/Metrol (I/F only)
・Relocation detection deviceVertical Machining Center
SOLDManufacturer MORI SEIKI Model NV5000a1B/40【SOLD】 Year 2005 Specification Control: MSX-501(F-18iMB)
Table: 1320×600, Loading capacity: 1200kg
Spindle: 14,000rpm, BT40, ATC30
Travel: XYZ: 1020×510×510
Distance from table to spindle end: 150~660Vertical Machining Center
Manufacturer MORI SEIKI Model MV-653/50 Year 2005 Specification Control: F-18iMB (MAPPSⅡ)
Table: 1,700×660, Loading capacity: 2000kg
Spindle: 10,000rpm, BT50, ATC30
Travel: XYZ: 1,530×660×650
Distance table top to spindle end: 200〜850
Vertical Machining Center
Manufacturer OKK Model VM-7 Year 2001 Specification Control:Neomatic 635(GMC Interactive)
Table:1550×740
Spindle:13,000rpm、 BBT50、 ATC30
Travel:XYZ:1530×740×660
Distance from table to spindle end: 150〜810
・Linear scale feedback(XYZ)
・Soft scale Ⅲ
Vertical Machining Center
Manufacturer MAKINO Model V56i Year 2017 Specification Makino V56i , Year 2017
Control:Professional 6(F-31iB5)
Table:1050×550 、Capacity:800kg
Spindle:20,000rpm, HSK-A63, ATC25
Travel:XYZ: 900×550×450
Distance between Table to spindle end:150-600
・Scare Feedback 0.05μm
・Through-spindle air
・Super GI.5 Control
・Lift up chip conveyorVertical Machining Center
Manufacturer MORI SEIKI Model NVX5080/50 Year 2011 Specification Control: M-730BM(MAPPS Ⅳ)
Table: 1100×600、Loading capacity:1000kg
Spindle: 8,000rpm、 BT50、 ATC30
Travel XYZ:800×530×510
On table to spindle end: 150-660
・With Relocation detecting deviceVertical Machining Center

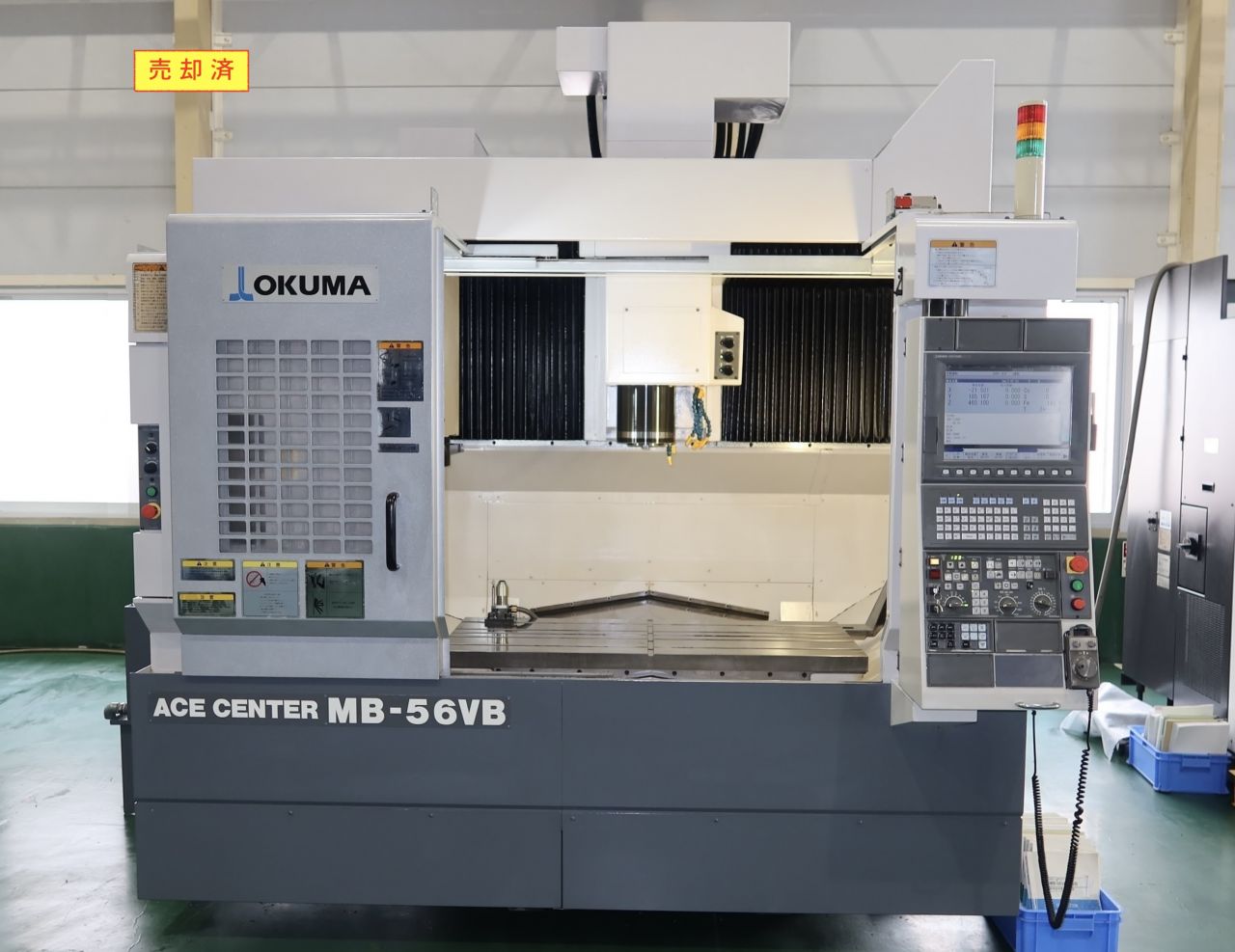

Manufacturer OKUMA Model MB-56VB Year 2004 Specification Control: OSP-E100M
Table: 1300×560
Travel: XYZ: 1050×560×460
Spindle: 12,000rpm, BT50, ATC32
Distance from table top to spindle end: 150〜610
・Absolute scale (XYZ)
・Automatic tool breakage detection
・Tool length measuring device
Vertical Machining Center
SOLD OUTManufacturer MAKINO Model V56【SOLD OUT】 Year 2003 Specification Control: Profesional 5 (F-180isMB)
Table: 1050×550、 Capacity:800kg
Spindle: 20,000rpm、 HSK-A63、 ATC25
Travel: XYZ:900×550×450
Distance between table top to spindle end: 150-600
・Scale feedback 0.05μm
・Through-spindle air
・Automatic Tool length measurements
・Super GI.4 controlVertical Machining Center
SOLD OUTManufacturer OKUMA Model MX-45VAE【SOLD OUT】 Year 1998 Specification Control: OSP-U100L
Table: 1000×460
Spindle: 7,000rpm, BT40, ATC32
Travel: XYZ: 762×460×460
Distance from table to spindle end: 160〜610
・Automatic Tool breakage detection
・Tool length measuring compensation
・Automatic origin position correction(including automatic measuring)Vertical Machining Center
SOLD OUTManufacturer OKUMA Model MB-56VA【SOLD OUT】 Year 2007 Specification 制御: OSP-P200M
Table: 560×1300、 積載: 900kg
主軸: 15,000rpm、 BT40(BBT)、 ATC20
移動量: XYZ:1050×560×460
Table上面〜主軸端面の距離: 150-610
・アブソスケール検出装置(X・Y・Z)
・自動工具長補正&工具折損検出
・ヘリカル切削・同期タップ・任意角度面取り
・スーパーHi-NC ・DNC-T1Vertical Machining Center
SOLD OUTManufacturer DMG MORI Model DuraVertical 5100【SOLD OUT】 Year 2015 Specification Control: Fanuc-0i-MD
Table: 1100×600, Loading capacity: 800kg
Spindle: 10,000rpm, BBT40, ATC30
Travels: XYZ: 1050×530×510
Distance from Table top to spindle end: 150〜660
・Through-spindle coolant (1.5MPa)
・Touch sensor(Spindle)/Renishaw OPM60
・Touch sensor(Table)/Metrol
・unsued 4th axis Rotary table in crate (Moriseiki DDRT-260X)
Vertical Machining Center
SOLD OUTManufacturer OKUMA Model MB-56VB【SOLD OUT】 Year 2006 Specification Control: OSP-P200M
Table: 560×1300、 Capacity:1000kg
Spindle: 12,000rpm、 BT50、 ATC20
Travel: XYZ:1050×560×460
Distance from table top to spindle end: 150-610
・Through-spindle coolant&Air
Tool length compensation &Tool breakage detection
・Workpiece set-up and inspection (Renishaw MP10 probe)
・Absolute acale(X・Y・Z)
・Helical Interpolation・Synchronized tapping
・Optional angle chamfering/Corner rouding
・Super Hi-NC ・DNC-T1
・Lift-up chip-conveyorVertical Machining Center
SOLD OUTManufacturer OKUMA Model MB-66VB【SOLD OUT】 Year 2014 Specification Control: OSP-P300M
Table: 660×1,530
Spindle: 12,000rpm, BT50, ATC32
Travel: XYZ: 1,500×660×660
Distance from table to spindle end: 150〜810
・Through-spindle coolant
・Spindle Through Air blow device
・Lift-up chip conveyorNext 15
