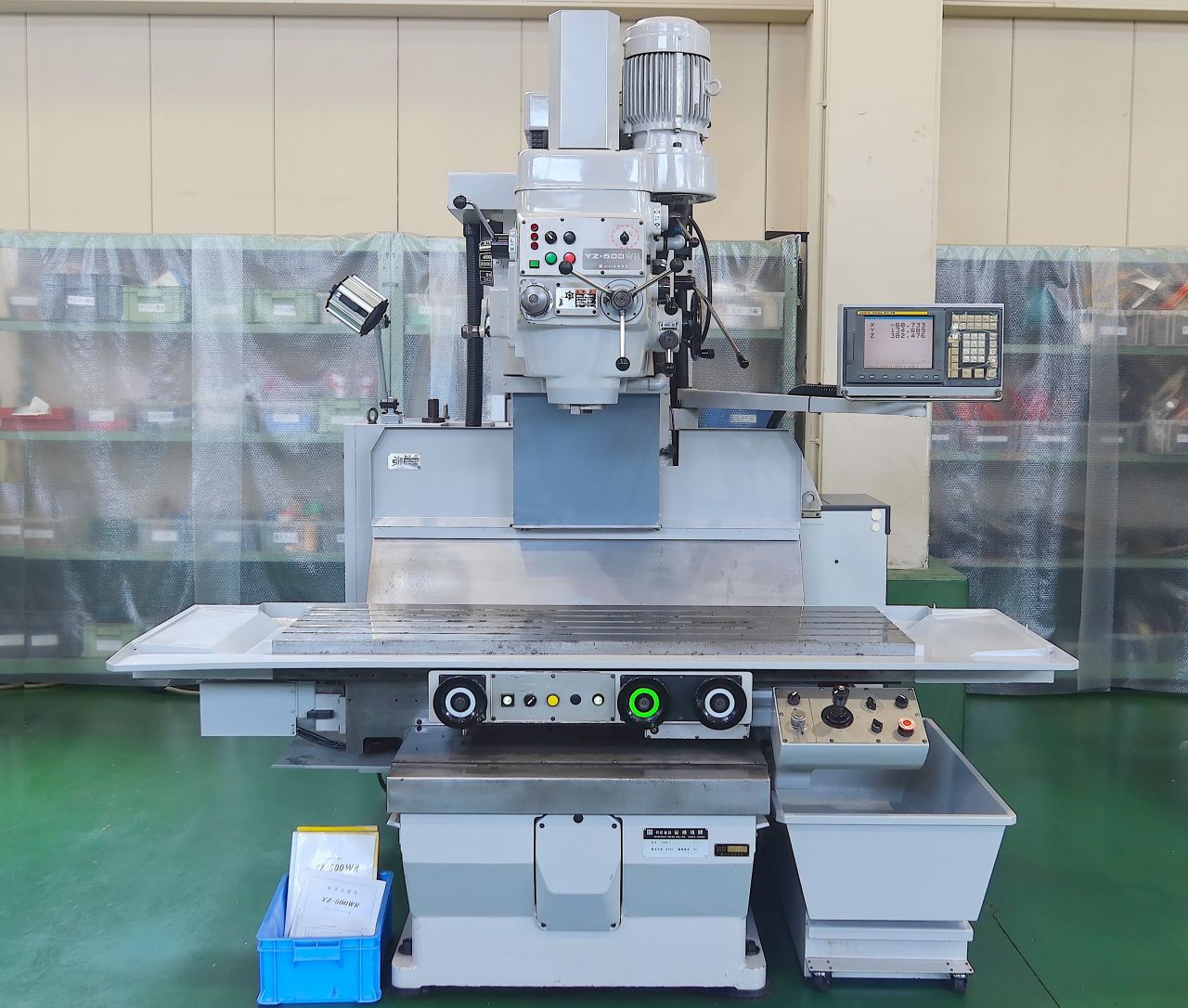

CNC Vertival Milling Machine

Manufacturer YAMASAKI Model YZ-8WR Year 2015
Specification Control:Fanuc-2i-Mode B (XY-axis control、Z-axis manual)
Table:1400×400, Capacity:600KG
Travel:XYZ:850×400×520
Distance from table top to spindle end:140〜660
Spindle: 2,000rpm,  NT50
・Cutting fluid device&Chip-bucket
詳細はこちら

CNC Vertival Milling Machine
SOLD OUT

Manufacturer YAMASAKI Model YZ-500WR【SOLD OUT】 Year 2015
Specification Control:Fanuc-32i-MB (X.Y-control、Z-manual)
Table:1600×500, Table capacity:600Kg
Travel:XYZ:1250×550×720
Distance from spindle top to table end:140〜860
Spindle :2,000rpm、  NT.50
・ Extened Z-axis stroke to 200mm
・ Extened X-axis stroke to 200mm
・ Pull stud typ tool attaching/detaching device(BT50)
詳細はこちら

CNC Horizontal Milling Machine
SOLD OUT

Manufacturer YAMASAKI Model YZB-88SG【SOLD OUT】 Year 2015
Specification Control:Fanuc-32i-Mode B
Table:1400×600, Capacity:1000KG
Travel:XYZ:1000×1020×660
Distance between table top to spindle end:-22〜638
Spindle: 3,000rpm,  NT50(BT)
・Hight column extended stroke to 200mm
・ Manual pulse generator handle
・ Pull stud type tool attaching/detaching device(BT50)
・ Super precision Indexing Square Table(600)
TsuDaKoma CTAP-601
詳細はこちら

NC Duplex Milling Machine
SOLD OUT

Manufacturer HAMAI Model 4DS-A【SOLD OUT】 Year 2008
Specification 制御:Fanuc-0i-MB
90°反転テーブル:800×800、 割出: 90度
積載重量:1,500KG
現在使用カッター:φ390 (φ425カッター仕様)
加工ワークサイズ:□186〜□800まで
主軸回転:55〜165rpm (大径主軸仕様)
テーブル上面より主軸中心までの高さ:335
両主軸間の距離:340〜1140
移動量: X軸(Table): 1,200
Y軸・Z軸(L, Rユニット前後): 400
・旋回式門型ワーククランプ装置(1本シリンダー)
ワーク最大旋回径:1150
・リフトアップチップコンベア
