CNC Machine Tools
Horizontal Machining Center
Manufacturer MAZAK Model FH-5800 Year 1999 Specification Control: MAZATROL FUSION 640M
Table: 500×2APC, Indexing: 1°
Loading capacity: 500kg
Spindle speed: 12,000rpm, BT40, ATC40
Travel:XYZ: 710×610×660
Distance from table surface to spindle end:50-660
・Through-spindle coolant (15kgf)
・Automatic tool length measuring & tool breakage detection
・Touch sensor(Renishaw OMP60)
・Option package for Die & Mold Specifications
・Chip-conveyor&chip-bucket
・630x630x2 pallet included
Horizontal Machining Center
Manufacturer MORI SEIKI Model NH4000DCG Year 2010 Specification Control: MSX-701Ⅳ(F-31iA) (MAPPS 4)
Table: 400×2APC, B-Axis: 0.001°
Capacity: 400kg
Spindle: 14,000rpm, BT40, ATC60
Travel:XYZ: 560×560×630
Distance from pallet surface to spindle centerline:80-640
・Through-spindle coolant(7.0MPa)
・Linear scale (X.Y.Z.B)(full closed-loop control) made by Magnescale
・manual measurement (tool and work piece setter)
・Touch sensor(Spindle)/ Renishaw OPM60
・Touch sensor(Table)/Metrol
・Chip-conveyor& bucket
✴︎ Relocation detection device
Vertical Machining Center
Manufacturer YAMASAKI Model YZ-502NC Year 2007 Specification Control: Fanuc-0iMB
Table: 1600×500
Spindle: 8,500rpm, BT40, ATC24
Travel: XYZ: 1250×500×550
Distance from table surface to spindle end: 700~150
・X-axis long stroke(Standard1050+200)
・Partition type cutting fluid tank(180L)
・ADD 1-axis(CIC Tilting Rotary table/ Nikken 5AX-200DA21FA)
・Expanded number of control axes: 4th axis
・Ai contour controlVertical Machining Center
Manufacturer OKUMA Model MB-66VB Year 2019 Specification Control: OSP-P300MA
Table: 660×1,530
Spindle: 6,000rpm, BT50, ATC32
Travel: XYZ: 1,500×660×660
Distance from table top to spindle nose: 150〜810
・Through-spindle coolant(1.5Mpa)
・Tool breakage detection
・Automatic tool length compensation
・Chip-conveyor

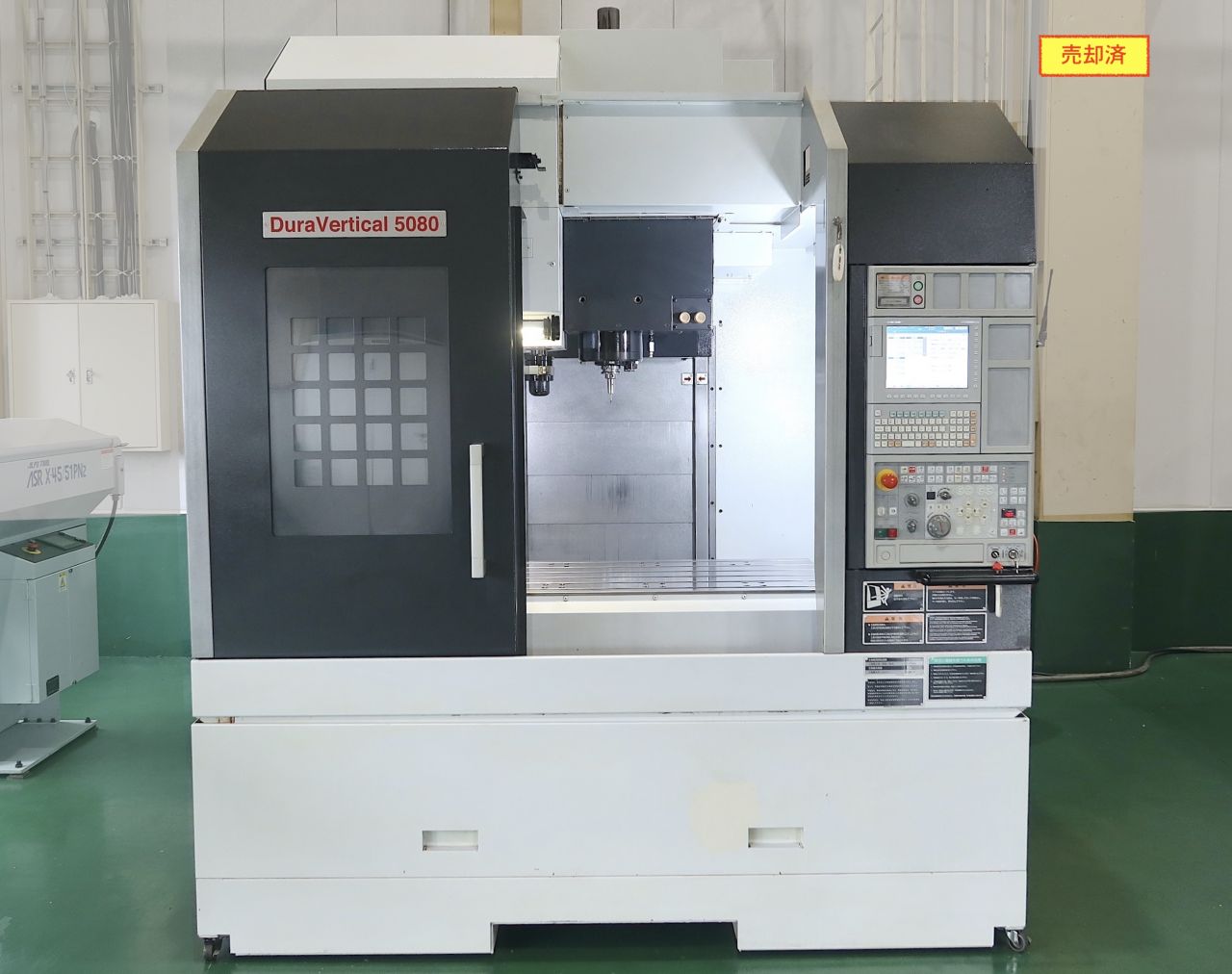

Vertical Machining Center
Manufacturer MORI SEIKI Model DuraVertical 5080 Year 2013 Specification Control: Fanuc-0i-MD (MAPPS Ⅳ)
Table: 1100×600, Loading capacity: 800kg
Spindle: 12,000rpm, BT40, ATC30
Travel: XYZ: 800×530×510
Distance table top to spindle end: 150〜660
・Touch sensor(Table)/Metrol (I/F only)
・Relocation detection deviceVertical Machining Center
Manufacturer DMG MORI Model DMC635V ecoline Year 2012 Specification Control: M730BM
Table: 790×560, Capacity: 600KG
Travel: XYZ: 635×510×460
Spindle: 8,000rpm, BT40, ATC20
Distance from table to spindle end: 120〜580
・Scale feedback(XYZ-axis)
★Relocation detecting device
Other Machining Center
Manufacturer FANUC Model a-D14MiA5 Year 2015 Specification Control: Fanuc-31i-MB5
Table: 650×400
Spindle: 10,000rpm, BT30, ATC14
Travel: XYZ: 500×400×330
Distance from table surface to spindle end: 150~480
Distance between Table to Table end: 150~480
・Automatic tool length measuring(including breakage detection)(BLUM Z-Nano)
・Touch Probe (BLUM TC52)Horizontal Machining Center
SOLD OUTManufacturer MORI SEIKI Model NH5000DCG/50【SOLD OUT】 Year 2012 Specification Control: Fanuc-31iA (MAPPS 4)
Table: 500×2APC, 0.001°Indexing
Table capacity: 500kg
Spindle: 8,000rpm, BT50, ATC54
Travel:XYZ: 730×730×850
Distance from pallet to spindle centerline: 100-830
・Through-spindle coolant(1.5MPa)
・Tool Presetter
・Touch sensor (Table)
・Chip-conveyor& bucket
✴︎ Relocation detection deviceHorizontal Machining Center
SOLD OUTManufacturer OKUMA Model MILLAC-525H【SOLD OUT】 Year 2007 Specification Control: Fanuc-16iMB
Table: 400×2APC, Indexing :0.001°(Arbitray)
Capacity: 350kg
Spindle: 8,000rpm, BT50, ATC30
Travel:XYZ: 520×450×520
Spindle center to Pallet:50-500
・Through-spindle coolant (3.5MPa)
・Automatic tool measurement (Including breakage detection)
・Automatic measurement (Renishaw MP10)
・Chip-conveyor& bucketHorizontal Machining Center
SOLD OUTManufacturer OKUMA Model MA-60HB【SOLD OUT】 Year 2003 Specification Control: OSP-E100M (Interactive function-MAP)
Table: 630×2APC, Indexing:1deg.
Loading capacity: 1200kg
Spindle speed: 5,000rpm, BT50, ATC40
Travel:XYZ: 1000×800×810
・Oil hole device
・Helical cutting ・Synchronized tapping Ⅱ
・Tool length/dia. compensation
・Chip-conveyor
Horizontal Machining Center
SOLD OUTManufacturer MORI SEIKI Model NH4000【SOLD OUT】 Year 2006 Specification Control: MSX-501Ⅲ(Fanuc-18iMB)
Table: 400×2APC, B-Axis: 1°
Spindle: 14,000rpm, BT40, ATC40
Travel:XYZ: 560×560×630
Capacity: 400kg
Swing DiameterxMax.machining high: φ630x900
・Chip-conveyorHorizontal Machining Center
SOLD OUTManufacturer OKUMA Model MA-400HA【SOLD OUT】 Year 2017 Specification Control: OSP-P300MA (Conversation MAP)
Table: 400×2APC, Indexing:0.001°(
Loading capacity: 400kg
Travel:XYZ: 560×610×625
Spindle : 8,000rpm, BT40(BBT), ATC60
・ Through-spindle coolant
・ Through-spindle airblow
・ absolute linear scale (XYZ-Axis)
・ Coolant device for Ballscrew &Hydraulic fluid
・ Automatic tool length compensation(Renishaw-TS34)
・ Automatic measurement with Origin correction(Renishaw-OMP60)
・ Helical Interpolation ・Sychronized tapping Ⅱ ・Optional angle chamfering/ Corner rounding
・ Super-NURBS ・Mist collector ・Automatic extinguish device
・Chip-conveyorHorizontal Machining Center
SOLD OUTManufacturer OKUMA Model MA-600HB【SOLD OUT】 Year 2005 Specification Control: OSP-E100M (Conversation MAP)
Table: 630×2APC, Indexing: 0.001°
Loading capacity: 1200kg
Travel:XYZ: 1000×900×1000
Spindle: 12,000rpm、 BT50、 ATC150
・Through-spindle coolant
・Through-Spindle air blow
・Spindle head cooling device
・Auto.tool length compensation (including breakage detection)
・Auto.measurement(Including origin correction)(Renishaw MP10)
・Helical Interpolation ・Synchronized tappingⅡ ・DNC-DT
・Chip conveyorHorizontal Machining Center
SOLD OUTManufacturer OKUMA&HOWA Model MILLAC-630H【SOLD OUT】 Year 2006 Specification Control: Fanuc-16iM
Table: 630×2APC, Indexing:0.001°
Loading capacity: 1200kg
Spindle speed: 10,000rpm, BT50, ATC80
Trevels:XYZ: 1020×820×820
Distance from table center to spindle nose:150-970
・Through spindle
・Scare feed back(XYZ-Axis)
・Ball screw and hydraulic oil cooling device
・Automatic tool length measuring(including breakage detection(Touch sensor)
・Automatic centering function (Renishaw)
・Helical interpolation・Rigid tap ・Optional charmfering
・Lift-up Chip conveyorHorizontal Machining Center
SOLD OUTManufacturer OKUMA Model MA-600HB【SOLD OUT】 Year 2011 Specification Okuma MA-600HB, Year2011
Control: OSP-P200M(Conversation)
Table: 630×2APC, Indexing: 1°
Loading capacity: 1200kg
Travel:XYZ: 1000×900×1000
Spindle: 6,000rpm、 BT50、 ATC60
・Through-spindle coolant
・Hi cut Pro ・DNC-T1
・Auto.tool length compensation (including breakage detection)
・Auto.measurement(Including origin correction)(Renishaw-OMP60)
・Helical Interpolation ・Synchronized tappingⅡ
・Optional angle chamfering
・Chip conveyorNext 15
