CNC Machine Tools
CNC Horizontal Boring Machine
SOLD OUTManufacturer TOSHIBA Model BTD-110.R13【SOLD OUT】 Year 1997 Specification Control:TOSNUC-888
Spindle:3000rpm、BT50、ATC60
T:1120x1250、 0.0001°Indexing、 Capacity:4000KG
Travel:XYZW: 1600x1250x1130x500
・Automatic measurement&touch probe(FM)
・Scale feedback(X,Y,Z,B-axis)
・Lift chip-conveyorCNC Horizontal Boring Machine
SOLD OUTManufacturer TOSHIBA Model BTD-110H.R16【SOLD OUT】 Year 2015 Specification Control:TOSNUC-999
Spindle:φ110
Table:1400×1600
B-axis: 0.0001deg.
Load capacity:6300kg
Travel:XYZW:2000×1500×1450×500
Spindle speed:3000rpm、BT50, ATC60
・Scale feedback(X,Y,Z,B-axis)
・Manual centering function(Including tool length/diameter measurement)
・automatic measurement&touch probe(FM)
・Lift chip-conveyor
・Angle plate (W800xD700xH1200)
CNC Horizontal Boring Machine
SOLD OUTManufacturer TOSHIBA Model BTD-200QH【SOLD OUT】 Year 2016 Specification Control:TOSNUC-999
Rotating spindle diameter:φ110
Extended quill diameter:φ200
Table:1200×1000, B-Axis: 0.0001°
Table loading capacity:4,000kg
Spindle speed:3,000rpm, BT50, ATC30
Travel:XYZW:1500×1200×700×400
Distance from table to spindle gage plane:450〜1150
・ Helical interpolation ・Synchronized tapping ・Optional angle chamfering
・ Manual centering fuction
・Manual tool length/Tool diameter measurement
・ Lift chip-conveyorCNC Horizontal Boring Machine
SOLD OUTManufacturer TOSHIBA Model BTD-13F.R22【SOLD OUT】 Year 2008 Specification Toshiba BTD-13F.R22, Year2008
Control:TOSNUC-888
Spindle:φ130
Table:1800×2200, B-Axis: 0.0001deg.
Load capacity:20,000kg (★Option)
Travels:XYZW:3000×2300×1600×700
Spindle:2500rpm、 BT50、 ATC60
* Angle Head(Manual) BT50, 350rpm
* Rotary Scale feedback(B-axis)
* Manual centering function(including manual tool length & diameter measurement)
* Automatic tool length measuring function
* Helical interpolation
* Synchronized tapping
* Optional angle chamfering
* Lift chip conveyor
CNC Horizontal Boring Machine
SOLD OUTManufacturer TOSHIBA Model BTD-130H.R22【SOLD OUT】 Year 2013 Specification Control:TOSNUC-999
Spindle:φ130
Table:1800×2200,
B-Axis: 0.0001deg.
Load capacity:12,000kg
Travels(XYZW):3000×2300×1600×700
Spindle:2500rpm, BT50, ATC38
・Scale feedback(XYZB-axis)
・Helical interpolation
・Synchronized tapping
・Optional angle chamferingCNC Horizontal Boring Machine

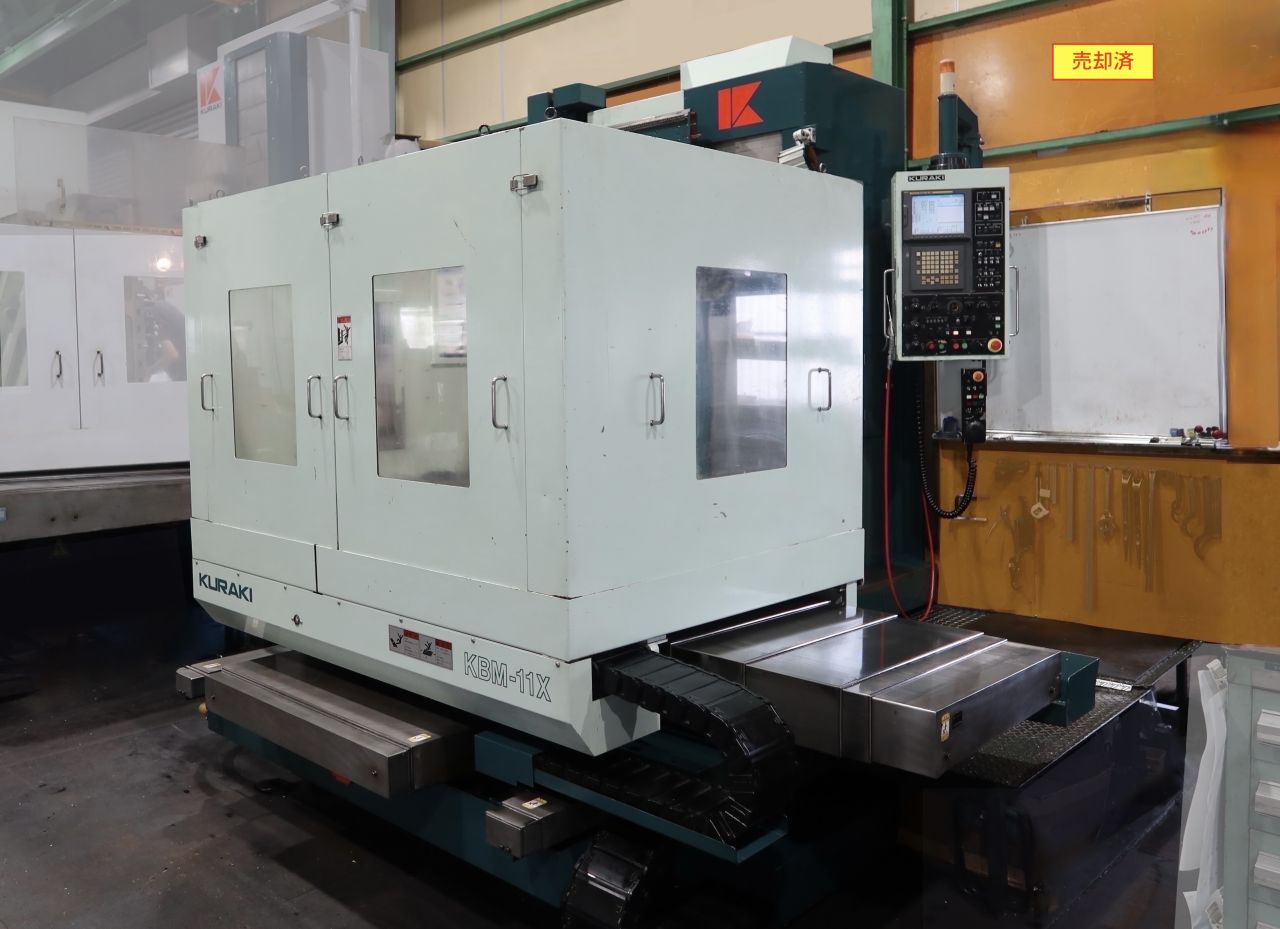

SOLD OUTManufacturer KURAKI Model KBM-11X【SOLD OUT】 Year 2015 Specification Control:Fanuc-31i-B5
Spindle:φ110
Table:950×1050, NC Indexing: 0.001deg.
Loading capacity:3,000kg
Travel:XYZW:1500×1200×700×350
Spindle speed:3,000rpm、 BT50, ATC30
・Scare feedback(X、Y、Z、B-Axis)
・ Optical machine probe (Renishaw OMP60)
・AI contour control
・Absolute position detector(X、Y、Z、W)
・Helical interpolation
・Rigid tapping
・・Optional angle chamfering and corner rounding
